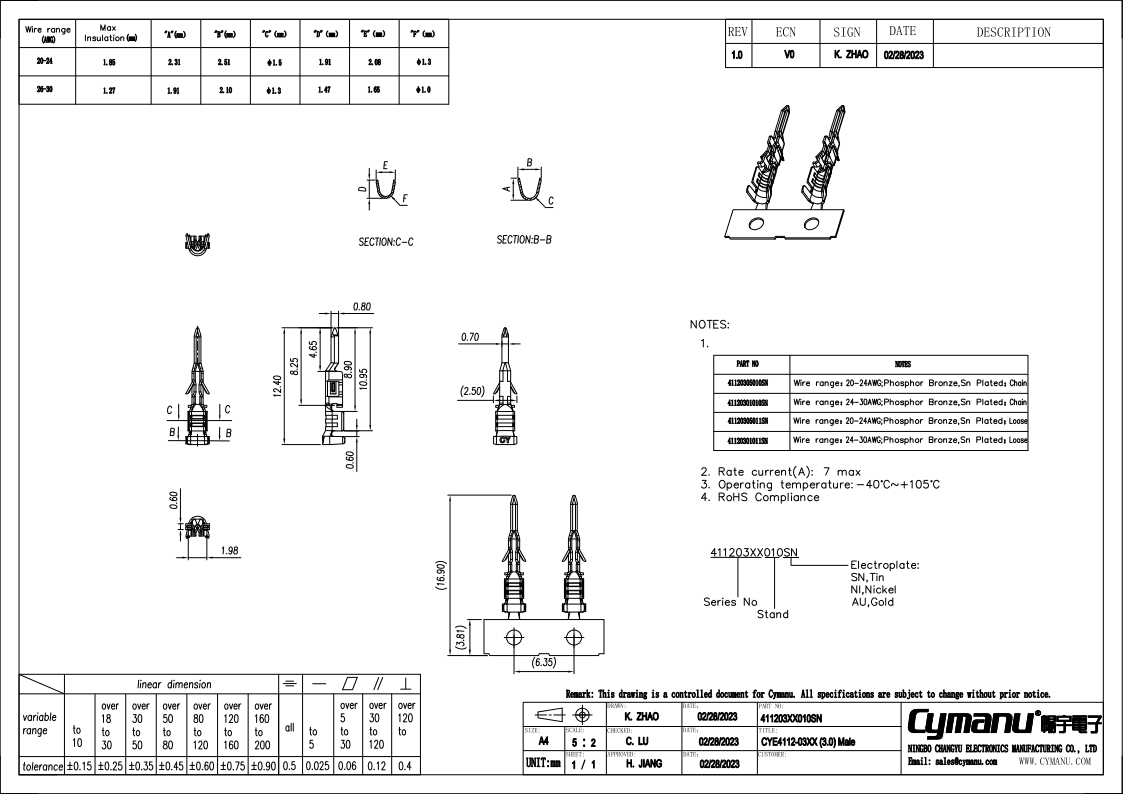

Part No.: 41120301010SN
Mating Tab Width: 0.7mm
Wire size: 0.05~0.14mm²
Termination method: crimp
| Structure characteristics | Remark | ||
| Style | Connector-Male terminal | ||
| Mating Tab Width | 0.7mm | ||
| Wire Size (mm²) | 0.05-0.14 | ||
| Wire Size (AWG): | 30-26 | ||
| Termination method | crimp | ||
| Electrical parameters | |||
| Rated current | 4A max | ||
| Contact resistance | ≤10mΩ | ||
| Material Data | |||
| RoHS | YES | ||
| Contact material | Copper alloy | ||
| Plating of conductor surface | Tin-plated | ||
| Environmental Data | |||
| Ambient Temperature | -40℃~105℃ | ||
| Industry Standard | |||
| Test Specification | UL1977/IEC61984 |
