5SD-M12A-03P-MM-SH7001-00AH

Panel mount connector - male

Part No.: 5SD-M12A-03P-MM-SH7001-00AH

Interface type: Type A, Board Mount,M12

Installation mode: Solder, Back fastened

Number of potentials: 3


Download: (PDF drawing or 3D drawing) CAD data

Specifications
Main parameter

Remark

Installation modeSolder, Back fastened

Interface type

Type A, Board Mount, Male



Thread specificationM12

        Fixed screw thread

PG9/M16*1.5

Mating Endurance>100

Number of potentials3

Torsional moment0.4N.m
Electrical parameters



Rated current4A

Rate voltage 250V

Impulse withstand voltage2.5KV

Insulation resistance≥100MΩ
Material data



RoHS Conform of RoHSYES

Insulation materialPA66

Contact materialCopper alloy

Plating of conductor surfaceGold-plated

Connector OvermoldTPU

Fastener materialCopper alloy  Nickel Plated




Environmental data



Ambient temperature-45℃-105℃

IP ClassIP67




Industry standard



Test SpecificationIEC61076

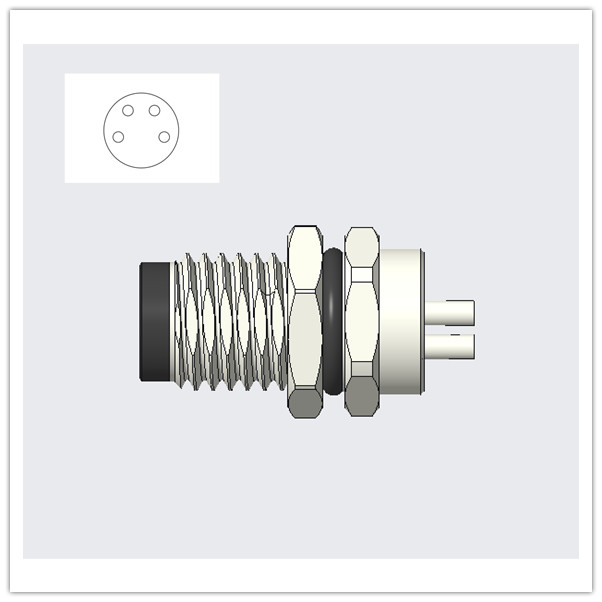

Related products
