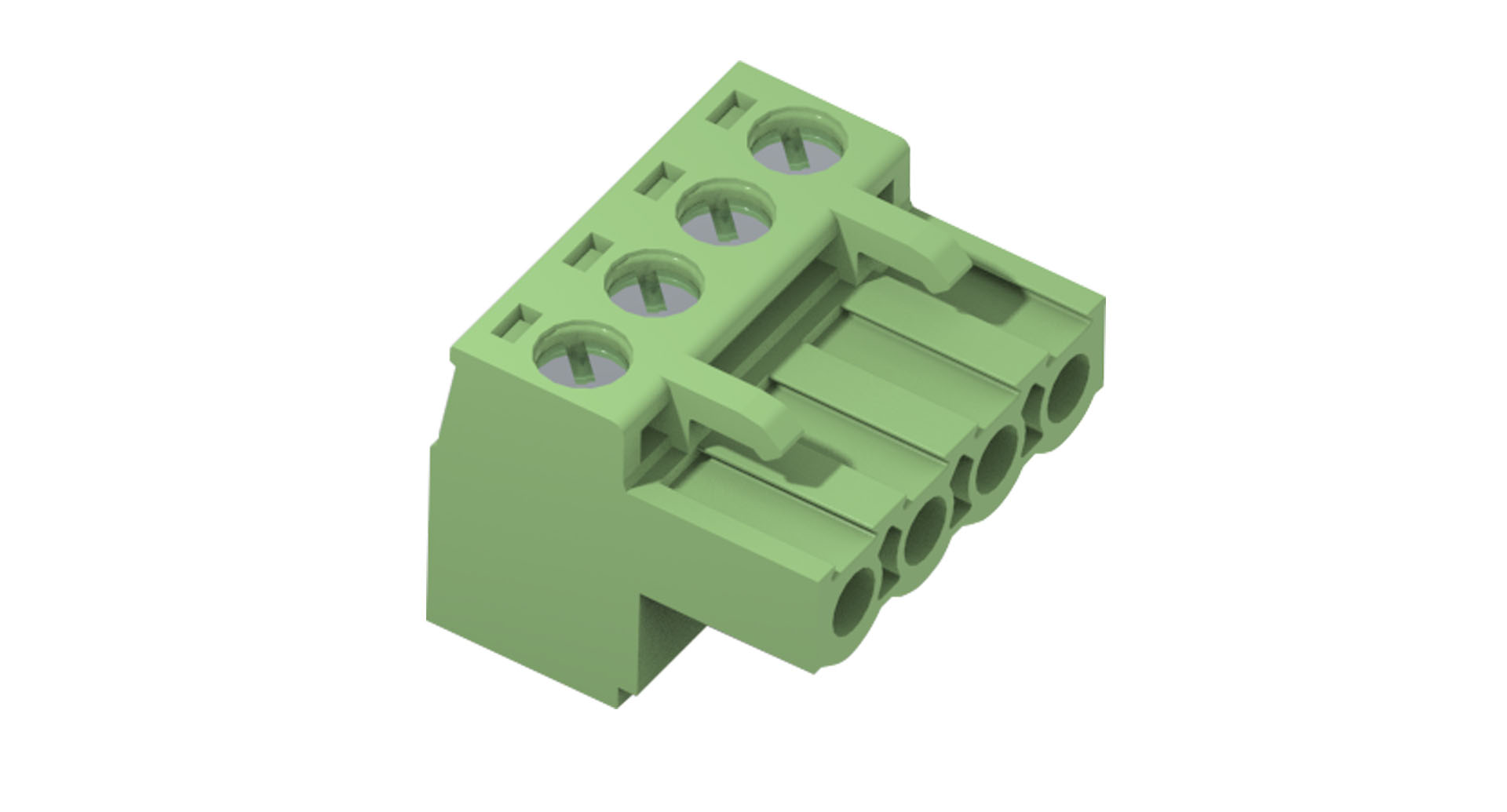

Part No.: CYE220V-500-XXP-1YY-000A
Rated current: 15A
Rated voltage: 320V
Pitch: 5.0mm
| Electrical parameters IEC | Remark | ||
| Rated current | 15A | ||
| Rate voltage （III/2） | 320V | ||
| Impulse withstand voltage（III/2） | 4.0KV | ||
| Electrical parameters UL | |||
| Rated current（B） | 12A | ||
| Rated voltage（B） | 300V | ||
| Dielectric voltage withstand | 1.6KV | ||
| Structure characteristics | |||
| Pitch | 5.0 | ||
| Number of potentials | 2 | ||
| Number of rows | 1 | ||
| Material Data | |||
| Conform of RoHS | YES | ||
| Insulation material | PA66 | ||
| Contact material | Copper alloy | ||
| Plating of conductor surface | Tin-plated | ||
| Flammability Rating | UL94V-0 | ||
| Environmental Data | |||
| Ambient Temperature | -40℃-105℃ | ||
| soldering method | wave soldering | ||
| Industry Standard | |||
| Test Specification | IEC61984/UL1059 |
